• Procesador

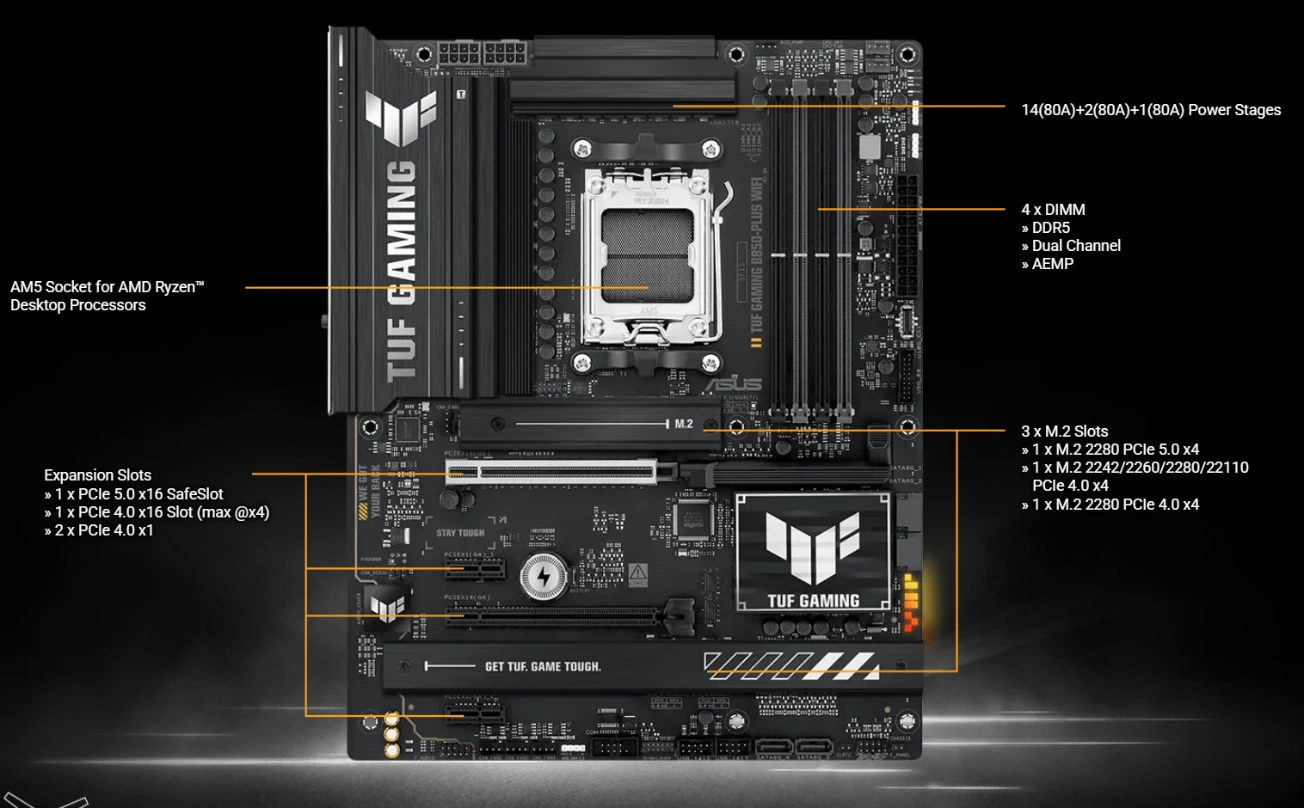

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

• Chipset

AMD B850 Chipset

• Memoria

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

* Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Gráfica Integrada

1 x DisplayPort**

1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

• Zócalos de Expansión

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)***

2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

*** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

• Interfaz de almacenamiento

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

* Specifications vary by CPU types.

** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

AMD RAIDXpert2 Technology

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

• LAN

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

• Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth® v5.4***

* Wi-Fi features may vary depending on the operating system.

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

Rear USB (Total 10 ports)

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A.

• Audio

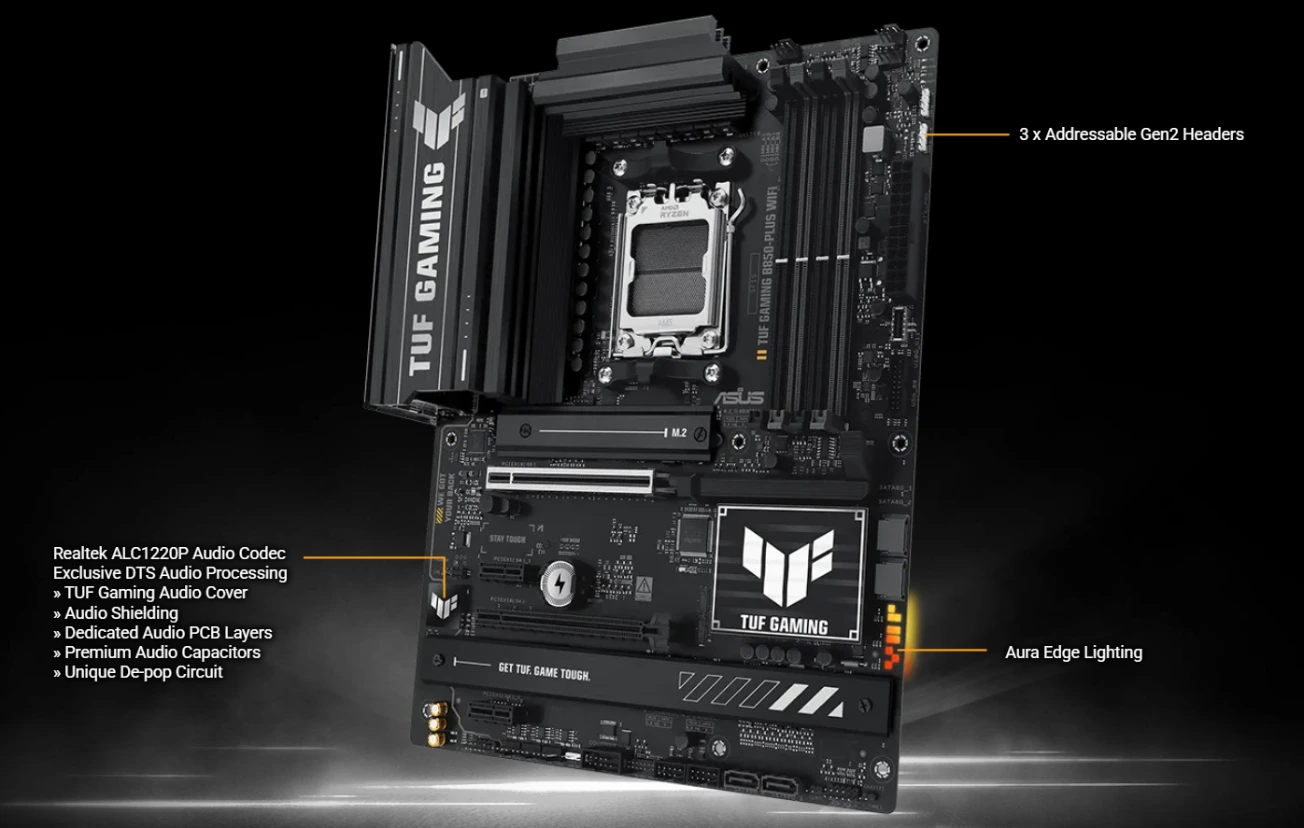

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

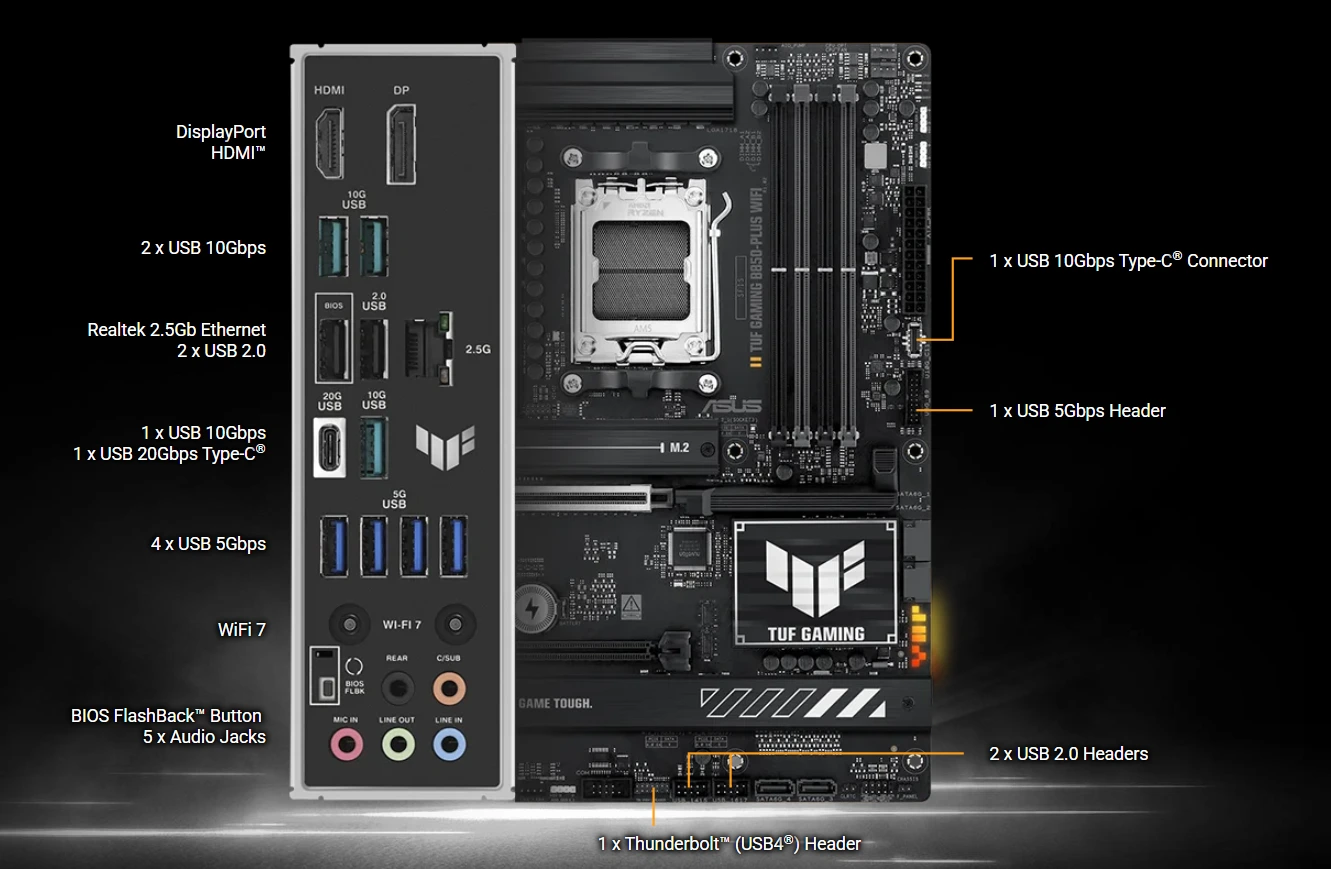

• Panel E/S Trasero

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

• Conectores Internos E/S

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thunderbolt™ (USB4®) header

• Tecnologías especiales


ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

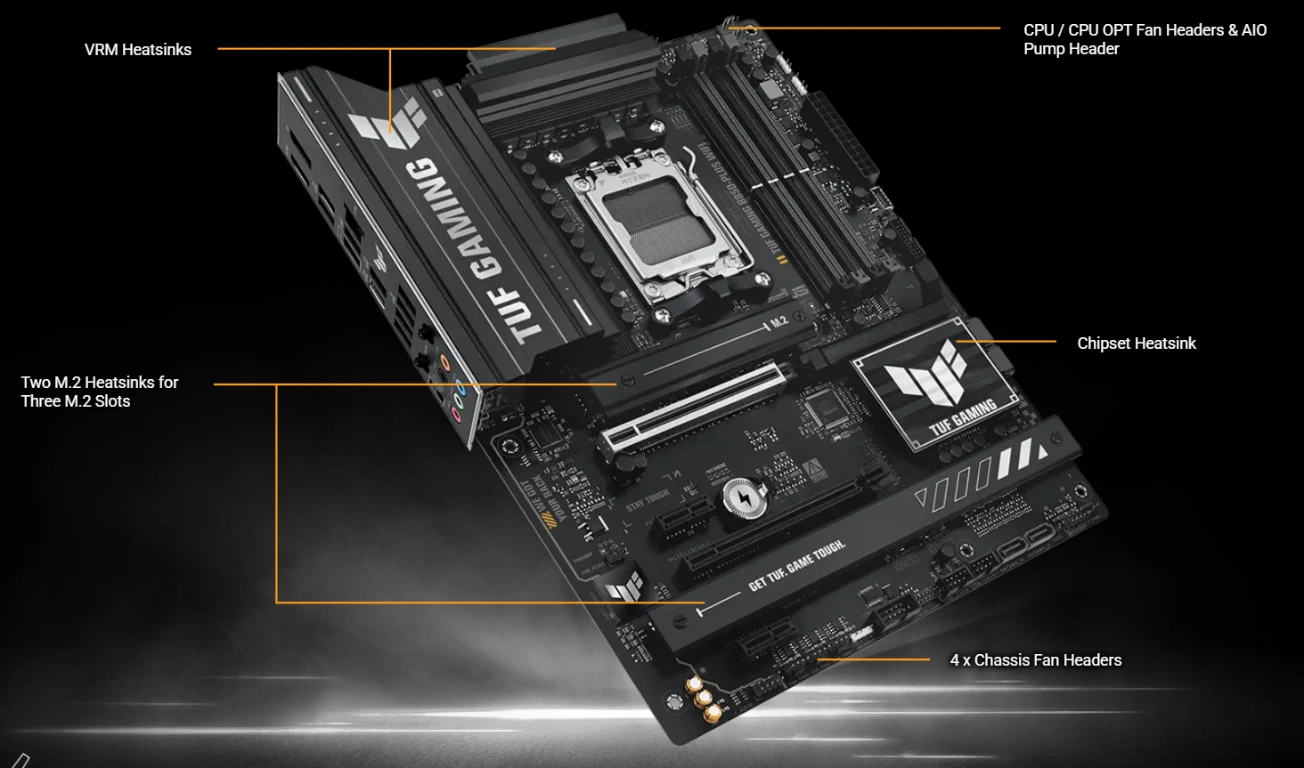

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

• Software

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

- Power Saving

ASUS DriverHub

ASUS GlideX

TurboV Core

TUF GAMING CPU-Z

DTS Audio Processing

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

• BIOS

256 Mb Flash ROM, UEFI AMI BIOS

• Manejabilidad


WOL by PME, PXE

• Accesorios


Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x TUF GAMING sticker

2 x M.2 rubber packages

Documentation

1 x Quick start guide

• Sistema Operativo

Windows 11

• Formato

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
